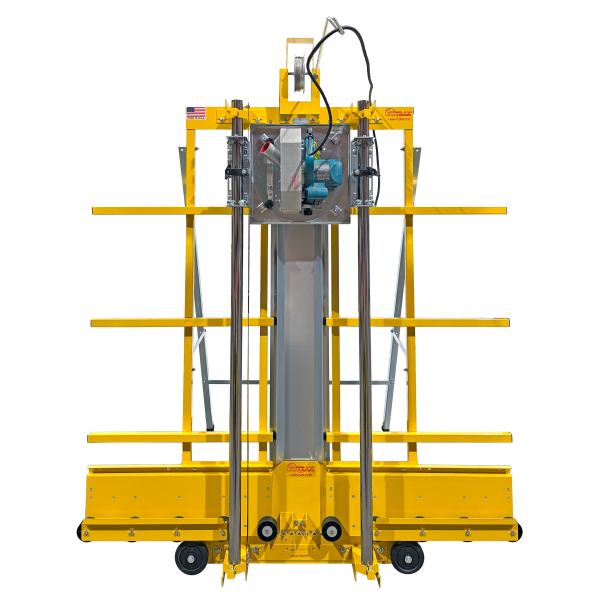

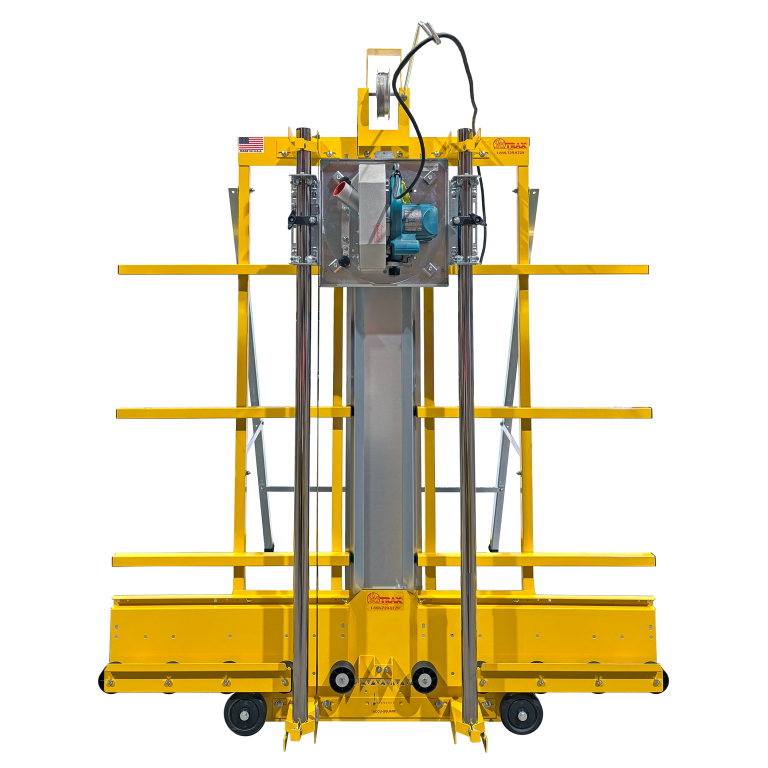

Compact Classic Series Vertical Panel Saw With Makita Saw Motor
Use this panel saw for cutting sheet goods with features like a powder coated steel frame, sealed bearings on carriage, patented alignment system and a powerful Makita motor
The Compact Classic Series was designed to provide professionals with a cost‑effective option while still delivering the quality and durability Saw Trax is known for. Built for an apples‑to‑apples comparison with bare‑bones panel saws on the market, the Compact Classic includes identical accessory compatibility but stands apart thanks to its superior standard features.
- Powder‑coated steel frame (vs. zinc‑coated frames on competitors)
- Real sealed bearings on the carriage (vs. U‑bolts with nylon rings)
- Patented Accu‑Square alignment system that never goes out of square
- More material rollers for better sheet support
- Nickel‑plated guide tubes (vs. zinc‑plated alternatives)
When compared side by side, there is still no comparison — the Saw Trax Compact Classic delivers unmatched accuracy and reliability.
Flexible Accessory Options
Unlike bundled packages offered in other models, accessories for the Compact Classic can be purchased individually. This makes it the ideal choice for users who know exactly what they want, without paying for extras they don’t need.
More Than a Panel Saw
The Compact Classic isn’t limited to straight cuts. With its quick‑release carriage, you can swap in other cutting inserts such as:
- Router
- Rolling shear
- Pivoting razor knife
This versatility makes the Compact Classic a true multi‑purpose cutting solution for shops and job sites.
Want to get even more out of your Varsity Series? Check out our accessories from Specialized Blades & Material Rollers to Safety Upgrades & Mount Kits, designed to maximize performance, efficiency, and ease of use.
| Price: | $2,199.00 - $2,599.00 |
|---|---|
| Weight: | 297 lbs. |
| SKU: | C52C-C64C |
| Available Models | Price |
|---|---|

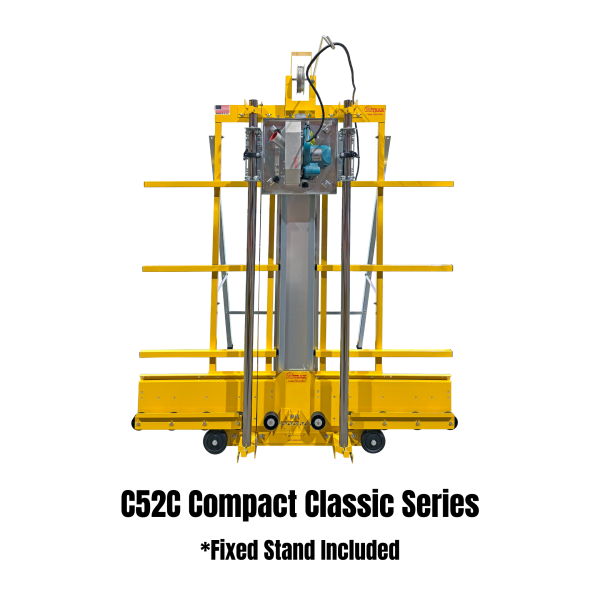

| 52" Cross Cut - Compact - #C52C | $2,199.00 |

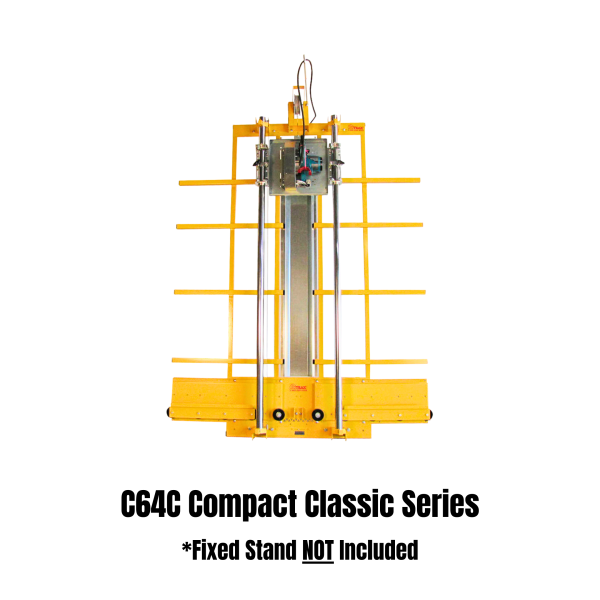

| 64" Cross Cut - Compact - #C64C | $2,599.00 |
How can we help you?
Product Inquiry for: Compact Classic Series Vertical Panel Saw With Makita Saw Motor
The Classic series was intended to directly compete with our competitors saw, offering the same accessories as their “plain Jane” saw.

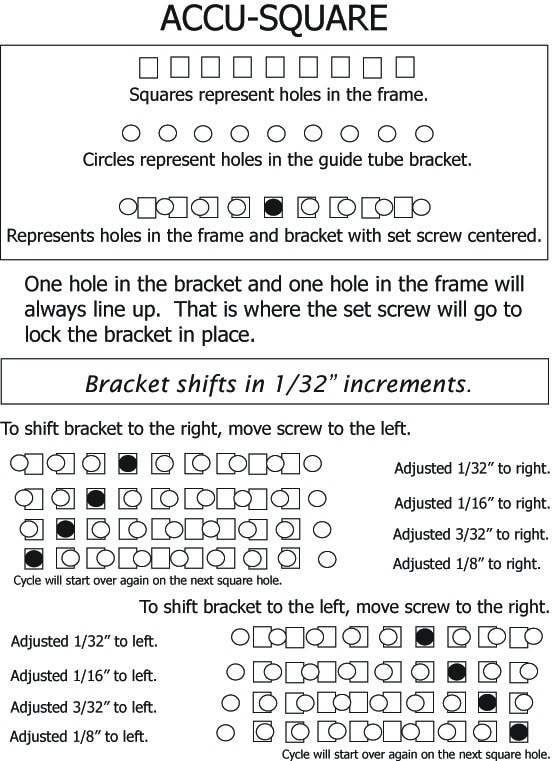

Our Classic panel saw comes with the Makita 5007F saw and saw cover, mounted to a spinning insert plate in a quick release carriage. It uses the Accu-Glide steel sealed bearing system with 12 bearings to travel up and down the 11 gauge nickel plated guide tubes. The guide tubes are attached to the frame with identical top and bottom brackets ensuring a straight travel of the saw. The top bracket is fixed to the machine and the bottom bracket can be moved with the Accu-Square indexed alignment system allowing for 1/32″ incremental movement. This is set at the factory for perfect alignment when you receive it. It will never go out of square with this system.
We use 10 material rollers on our Compact 5 ft. wide frames vs. 8 on theirs. This difference provides better support on our machines. Besides more material roller support, a center material support step is used on our machine to support thinly cut pieces preventing them from falling and bouncing back into the saw blade after the cut.
The Saw Trax machine is designed with the component system in mind. Where this makes a big difference is if your panel saw were to be damaged or you want to use a different cutting tool in the carriage. The guide tubes and material fences could be easily removed and replaced if necessary. These are the parts that typically get damaged. Since other saws weld these parts on, you are buying another machine. With ours, you simply get another fence or guide tube.
Speaking of replacing parts, our Makita 5007F saw is an off the shelf saw. What this means it can be worked on by any Makita service centers or replaced by any Makita Dealer. This means to you cheaper and faster repair/replacement and shorter down times. Both frames are welded steel tubing. Ours is powder coated not just zinc coated or painted. By the way, our panel saw comes with a 24 tooth Makita saw blade while they make you look for their 8″ obscure and expensive blade.
The multi-function quick release saw carriage that can use other cutting tools like a floating router, razor knife, and rolling aluminum composite shear. This saw can be purchased with additional accessories or upgrade to our Varsity and 1000 series saws that have a bundled accessory package that is discounted but not required for cutting.
Standard Equipment
- Accu-Square Alignment System
- Accu-Glide Sealed Bearing System
- Powder Coated Steel Frame
- Nickel Chrome Plated Guide Tubes
- Quick Release Carriage with 2 Locks
- Retraction Mechanism
- Cord Holder
- Center Material Support
Package Includes
- Makita 5007F saw
- Trigger Lock

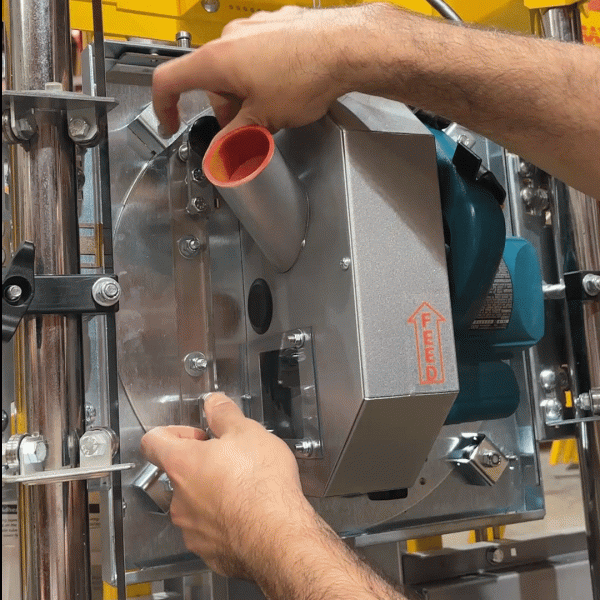

- Spinning Saw Insert Plate
- Dust Containment Hood

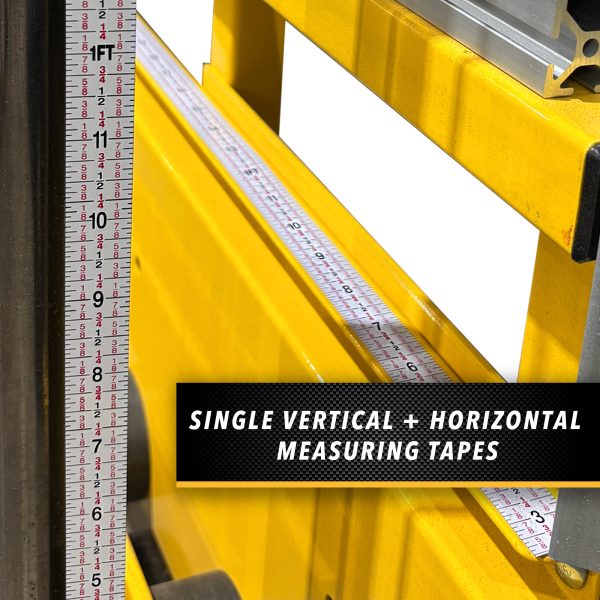

- Single Vertical and Horizontal Measuring Tapes
- Wall Mount Kit (C64C only)

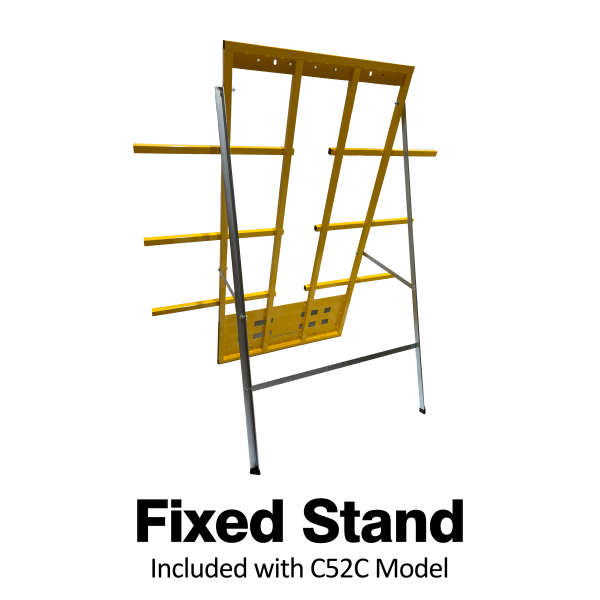

- Fixed Stand (C52C only)
- Transport Wheels (C52C only)
Optional Accessories
- Wall Mounting System
- Dust Brush, 12′ Hose and Coupler
- Full Mid-Fence
- Pivoting Knife Insert Plate
- Floating Router Insert Plate
- Spring Hold Down
- ACM Rolling Shear Insert Plate
- Sheet Clamp
- Full Builder’s Extensions
- Laser Guide
- Steel Sleeved Material Rollers
- Frame Dust Collection
- Flip Stop System
- Universal Insert Plate
- Material Dolly
- Transport Wheels
- Folding Stand
- Stop Block with Bar
Including all the standard features, like a Makita 5007F circular saw on a spinning insert plate for both vertical and horizontal cuts and a dust containment hood and viewing port, our Classic Series Panel Saws are perfect for hobbyists.
With Saw Trax Mfg., Inc.’s patented Accu-Square alignment system assuring that your machine will never go out of square, the Classic Series is reliable, accurate and easy to learn, and is the right tool for the person who wants what they want.
