60T Premium Aluminum Blade

Perfect for non-ferrous metals such as aluminum, copper, brass, and bronze. Triple Chip tooth design.
Not compatible with 3000 Series saws.

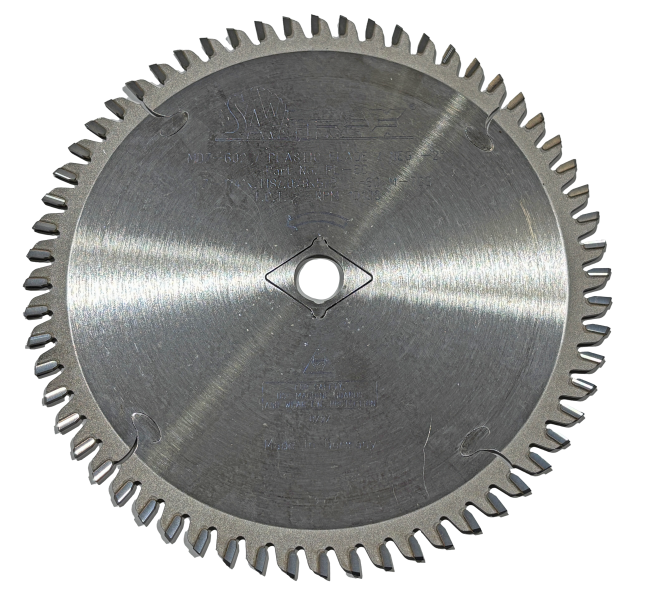

60T Premium Plastics Blade

Perfect for plastics such as Sintra, Lexan, & Styrene. Smooth, clean and melt-free cuts on most plastics. Works well on veneered plywood or Melamine. Hi Alternate Taper tooth design.

Not compatible with 3000 Series saws.

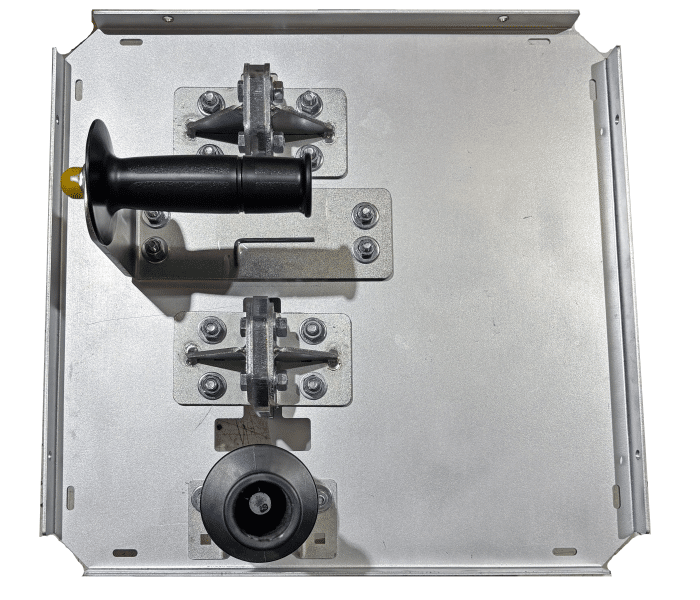

ACM Rolling Shear Insert Plate

Allows for Aluminum Composite Material cross-cutting

Produce clean, dust-free cross-cuts in aluminum composite materials with speed, accuracy, and professional results.

The SawTrax ACM Cutter Insert uses a rolling shear design to cut 3mm aluminum composite material without generating dust, chips, or sharp edges. Instead of removing material like a saw blade, two opposing circular cutters pinch the panel and force it to separate cleanly.

The result is a smooth, rounded edge that is safer to handle and often requires less finishing than traditional cutting methods.

• Dust-free cutting system for aluminum composite materials
• Uses opposing rolling cutters to separate material cleanly
• Produces smooth, rounded edges without burrs
• Designed for 3mm ACM panel processing

Compatible with most current SawTrax Vertical Panel Saws
**Not compatible with 3000 Series Panel Saws

Floating Router Insert Plate

The Router Insert That Follows Material Contours for Consistent Results

Create precise dados, grooves, and V-cuts with consistent depth, even on bowed, warped, or twisted sheet materials.

The SawTrax Floating Router Plate transforms your Vertical Panel Saw into a versatile routing system capable of producing accurate dados, grooves, and ACM V-cuts with exceptional consistency. Unlike fixed router mounts, the Floating Router Plate follows the contour of the sheet material as it moves across the cut line.

This unique floating design helps maintain a uniform cutting depth, making it ideal for materials that are not perfectly flat. As the router follows the surface of the panel, operators can achieve cleaner, more consistent routing results without extensive material preparation.

The Floating Router Plate is particularly valuable for fabricating ACM architectural elements, dimensional signage, display structures, cabinets, and custom millwork requiring accurate groove depths.

Its universal mounting design accommodates most router motors, giving shops the flexibility to use existing equipment while expanding the capabilities of their SawTrax Vertical Panel Saw.

Router motor sold separately. Porter-Cable® Model 892 recommended.

Pivoting Knife Insert Plate

Precision Cutting and Scoring for Foam Board, PVC, Coroplast®, and Display Materials

Cut, score, and process foam board, corrugated plastic, PVC, and other flexible sheet materials with precision on your SawTrax Vertical Panel Saw.

The SawTrax Pivoting Knife Cutter is a versatile insert designed for clean cutting and scoring of sign-making, packaging, and display materials. The pivoting knife design follows the direction of travel, allowing smooth rip cuts and cross cuts while maintaining accuracy and control.
The Sawtrax Pivoting Knife Insert Plate is used to cut or score:

• Sintra
• Expanded PVC
• Coroplast
• Gator Foam
• Cardboard
• Foam Board

• Knife can rip-cut and cross-cut.
• Uses OLFA^® Knife with “snap to sharpen” blades.
• Switch from Circular Saw to Knife Insert in seconds!
