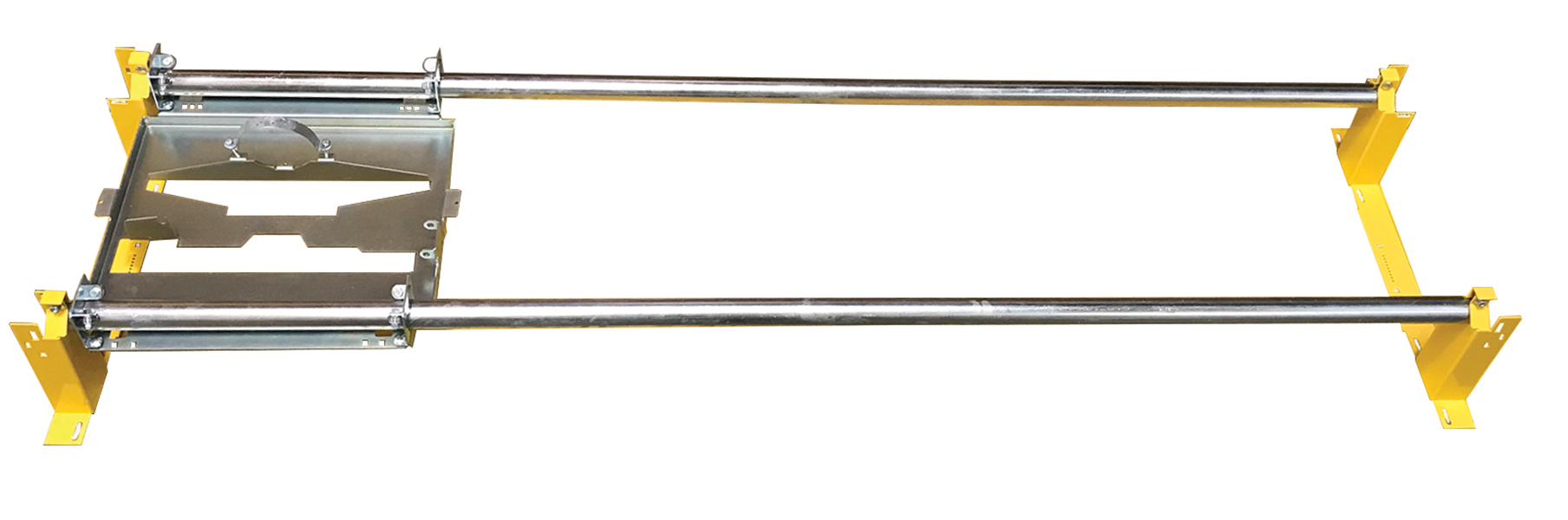

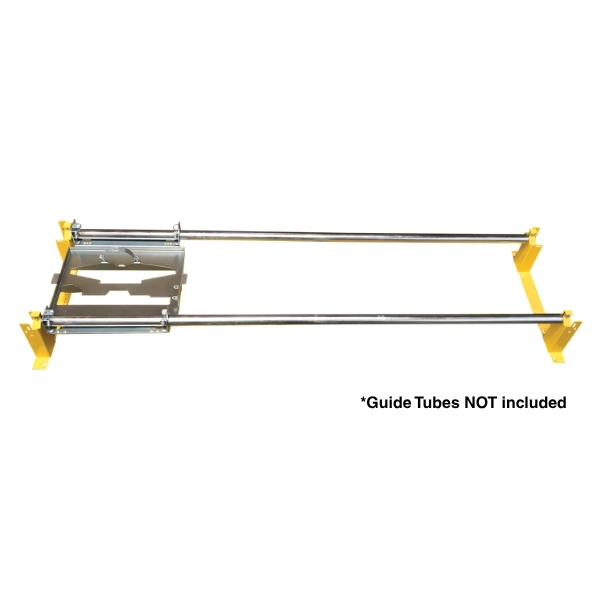

The SawTrax Beam Saw Kit provides the core mechanical components needed to build a high‑accuracy beam saw using your own circular saw, guide tubes, and dust collection system. This kit is ideal for shops that want the precision of a commercial panel saw, but prefer to fabricate their own frame or integrate the system into existing shop infrastructure.

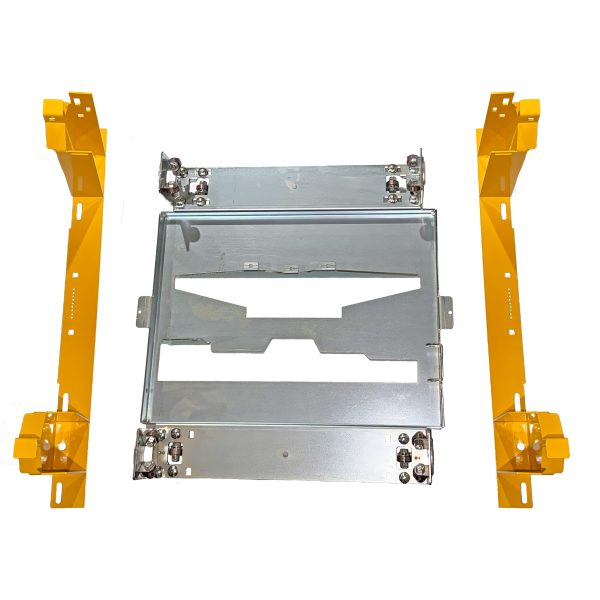

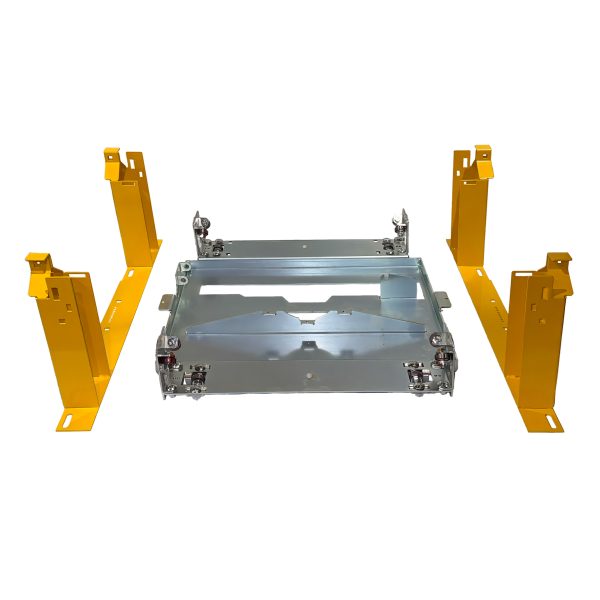

The kit includes:

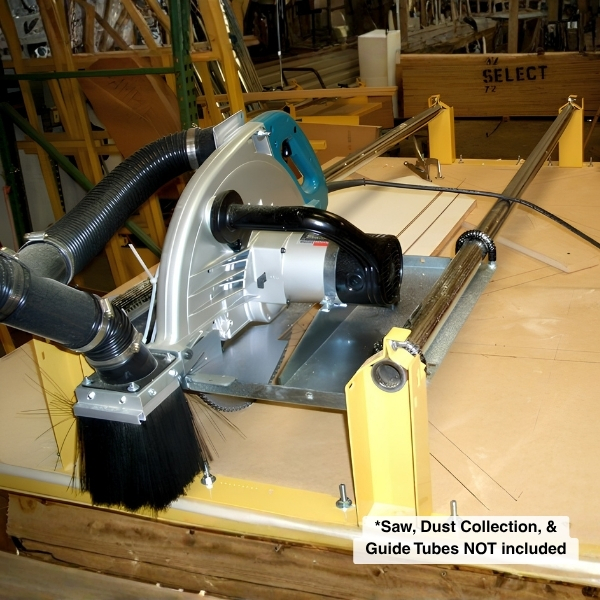

To complete the system, customers must supply:
Call for more details or bulk pricing.
| Price: | $1259.00 |
|---|---|
| SKU: | BSK2026 |

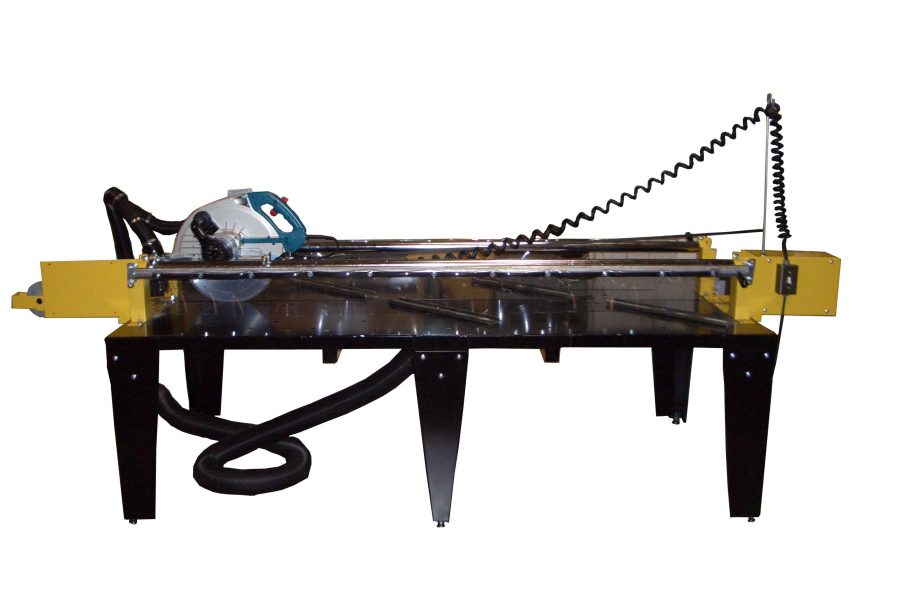

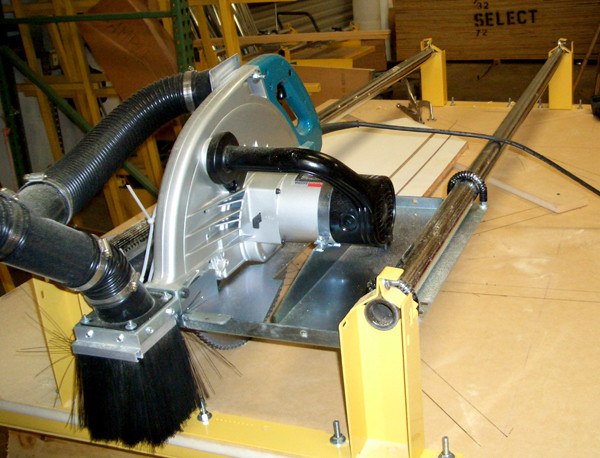

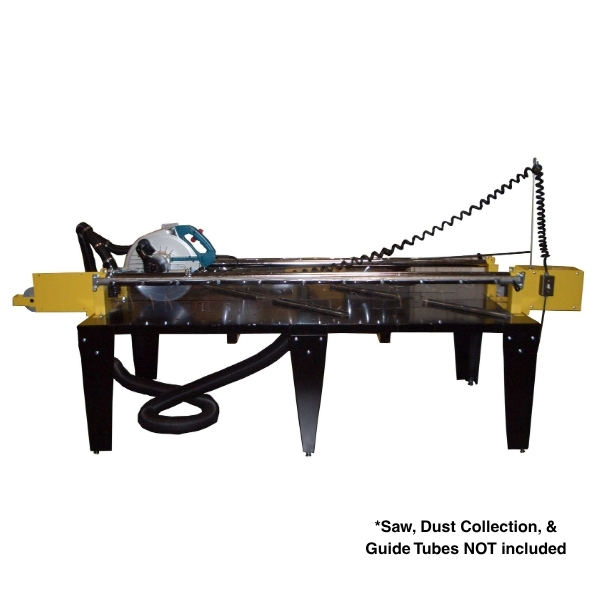

The Beam Saw Kit provides the precision tracking mechanism required for straight, repeatable cuts across large sheet materials. When paired with the Makita 5402NA and DOM guide tubes, the system becomes a rigid, smooth‑travel beam saw capable of sizing:
| Feature | Detail |
|---|---|
| Mounting | Clamps/fasteners for standard work tables |
| Saw Compatibility | Makita Beam Saw 5402NA – 16-5/16" saw |
| Guide Tube Suggestions | Round DOM tubing - 85.75” x 1.75” x .250” wall |
| Max Cut Depth | 6-3/16" |
| Material Capacity | Full sheets up to 4' x 8' supported (depending on guide tubes/saw motor used) |
| Weight | Approx. 15-20lbs |
| Safety | Includes guide rails and dust port option |
| Metric | Typical Value |
|---|---|
| Cut Accuracy | ±1/32″ with properly aligned tubes |
| Travel Smoothness | <5 lbs push force across full tube length |
| Material Capacity | Full sheet goods up to 10 ft depending on tube length |
| System Weight | Varies by user‑built frame; kit components ~18–22 lbs |
